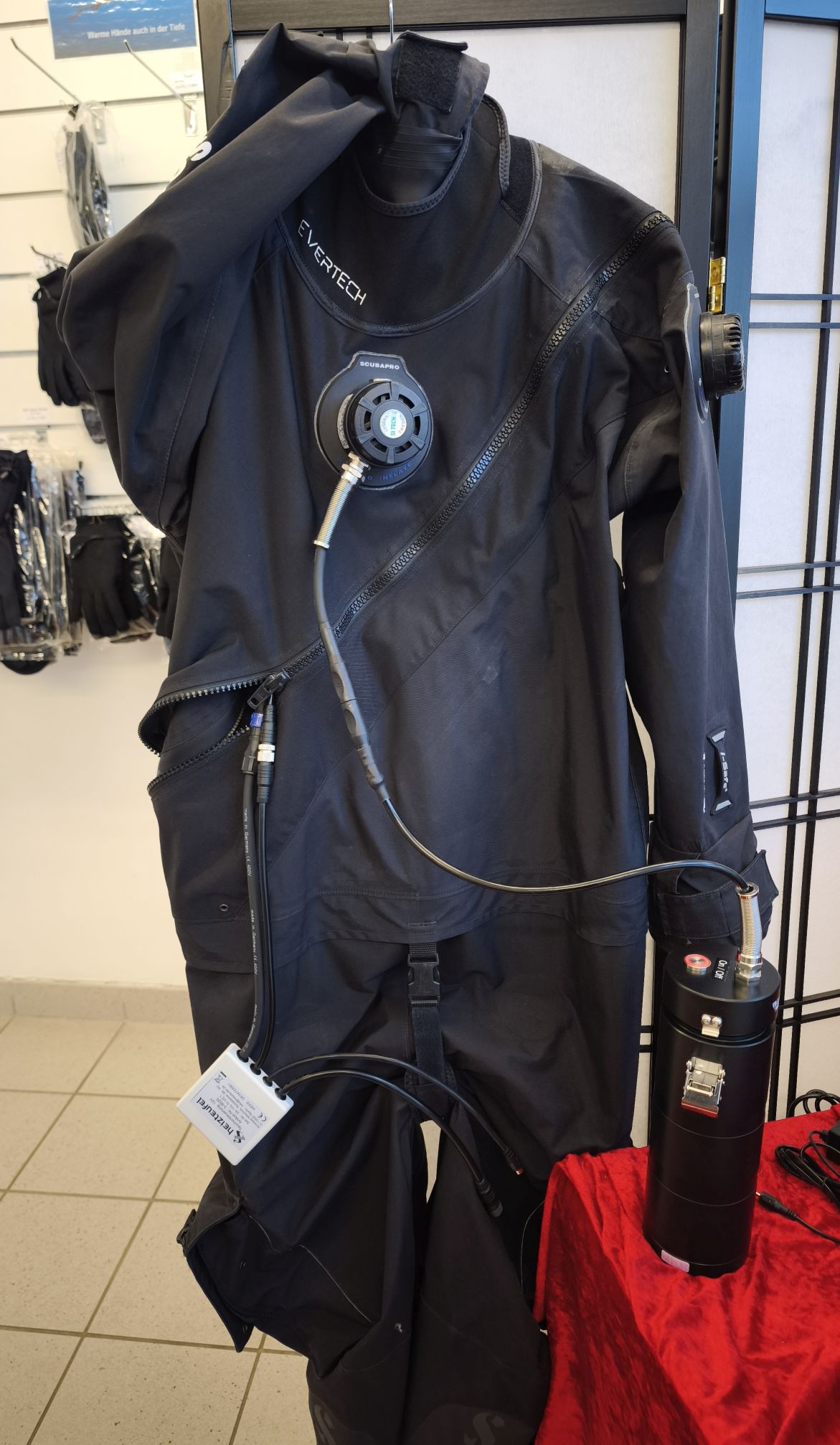

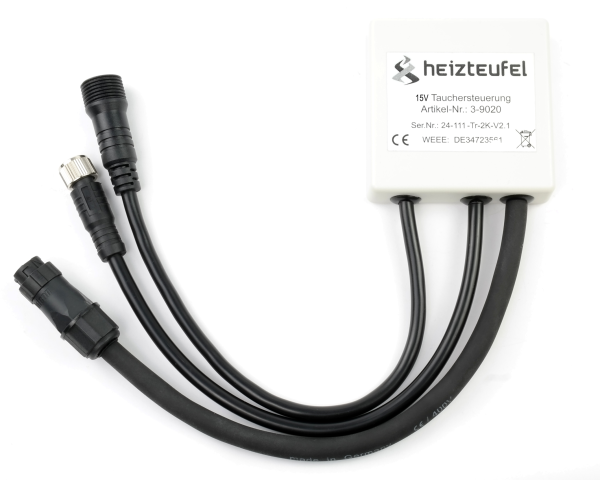

Diver Heating Control with E-Valve for Sitech Valves
NEW
Features battery tanks with diver heating control – powerful battery power for the Heated Base Layer Series E-Thermal Fusion:
- The battery tanks are developed, manufactured and of tested quality made by Heizteufel in Germany
- Compact POM housing with stainless steel latches and waterproof stainless steel bushings with cable kink protection > 100 meters diving depth
- waterproof stainless steel buttons with RGB ring LED and without LED; optionally flat and raised designs for a good glove tactile feel
- Electronic heating control with 4 levels 0 - 25% - 50% - 75% - 100% - 0, factory programmable to other characteristics
- Possible extensions of the heating control to include a 2nd heating circuit and the optional connection of submersible lights
- Visual and haptic feedback through strong vibration as a tactile signal feedback as well as the switched heating level
- Visual and haptic warning message through a clear vibration signal when 50% and 25% remaining battery capacity is reached
- On the output side there are 2-pin E/O cords used worldwide as well as 4-pin waterproof cable connections from well-known manufacturers for 2 heating circuits
- a powerful premium charger with active PFC (high efficiency and long service life) and powerful XT60 cable connector
- In terms of fastening, stainless steel cable clamps are available for the battery tank and Cordura textile straps for belts, backplates and thighs
- Certification of battery technology according to UN38.3 and/or MSDS (Material Safety Data Sheet) by accredited testing centers
- Our service is always available on weekdays and responds to your wishes and technical requirements with a high level of expertise
14.8V | 40Ah | 592Wh Li-Ion Battery Tank XPRO-40 with Heater Control for Heated Diving Clothing.
The XPRO-40 delivers maximum battery performance for heated diving with a heating power plus of >75% compared to well known brand registered 12V diving batteries like from SeaYa, Santi, UwaVis, Thor, Yellow Diving or Wings & More.
The battery tank comes from German production and guarantees a diving depth of >100 meters. Its performance data meet the high requirements for heated diving. It supplies extensively worn heated diving clothing with the necessary high heating power. Modern high performance round cells of the 21700 Li-Ion technology are assembled to a power pack of 14.8V with 40Ah and safety tested according to UN38.3.
Piezo pushbutton switching
A 4-stage 160-watt heating control is incorporated into the tank head, which is cycled by stainless steel piezo pushbutton in 25% heating stages: from 100% - 75% - 50% - 25% and then again starting at 100%. The piezo pushbutton has a concave bulge and increases the tactile feel when switching.
Optionally, a second piezo pushbutton can be added with another 4-stage 160-watt heater control. The supply line and 30-bar waterproof connector comes in the case 4-pole. This allows very high heating power to be supplied to the body. However, it is also possible to fire different heating zones or heating clothing with different heat outputs, e.g. heating gloves on a high level and heating vests on a medium level.
Battery tank head
The cable outlet on the battery head is kept watertight to >10 bar with a V4A/316L stainless steel bushing. A spiralized V2A/304 stainless steel bend protector also secures the cable against bending stress. The battery head is secured with latches that allow quick, easy opening and closing. All components are of premium quality.
Connecting cables and connectors
The 2- or 4-core connection cables with deep-sea tested connectors can also be disconnected and connected under water if a second battery tank is to be connected during the dive. The connectors are additionally equipped with a screwable safety sleeve against unintentional disconnection. The Heizteufel cord connections are not compatible with Thor, WET or original E/O cords.
On request, branded cables and connectors as well as other systems known from technical diving can be ordered optionally and supplied by us assembled, e.g. Thor-Cords, WAM-Cords, Fischer for BTS systems, WET-Connect, Santi, Yellow Diving, SubConn.

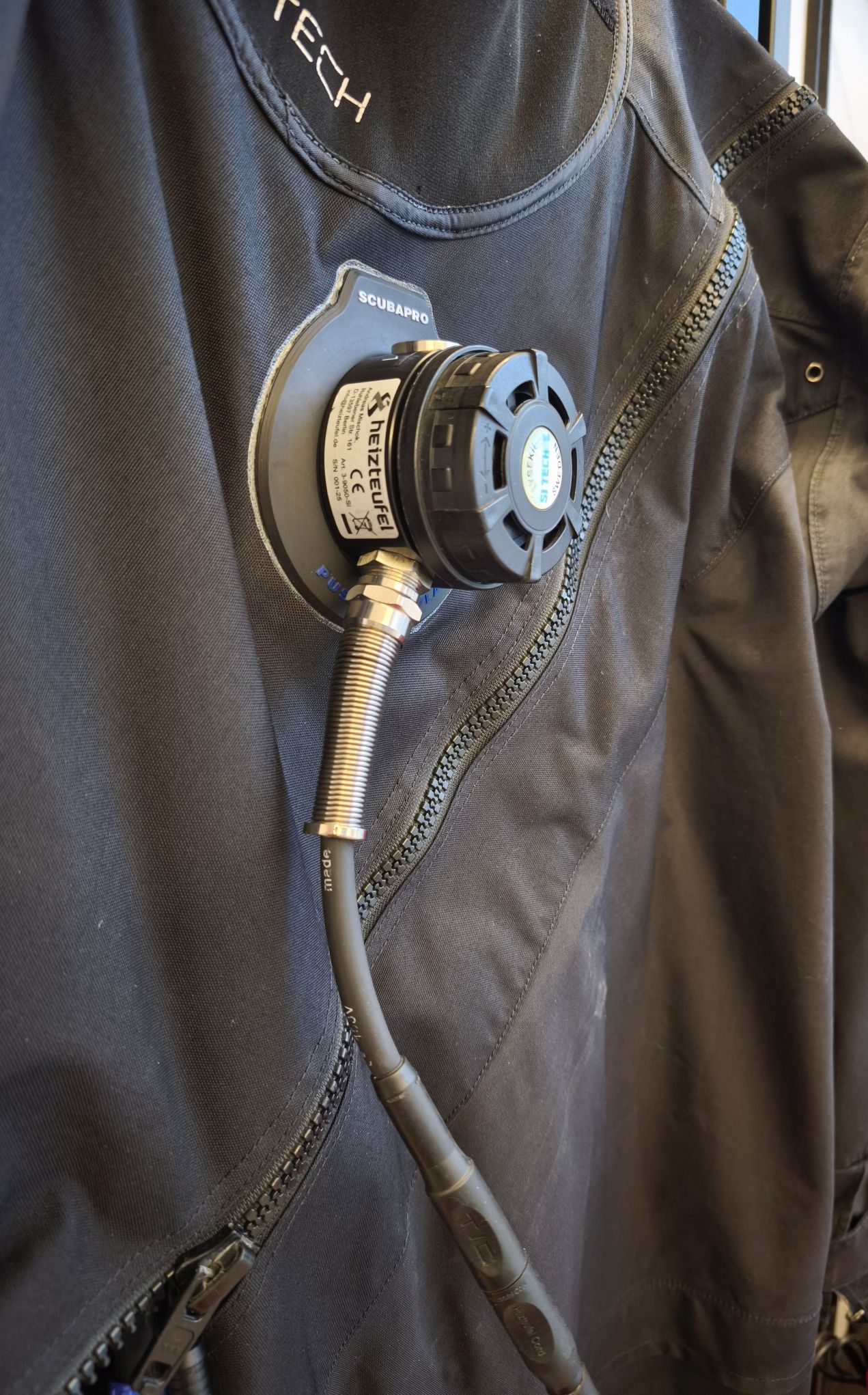

Vega valve from Si-Tech
The current suit lead-through wired by Heizteufel is the Vega valve from Si-Tech. It can be connected to an existing feedthrough in just a few simple steps. The connectors are compatible with the battery tank and heater suit cables. The transition from the inner feedthrough cable to the heating garment comes with a visual signal control for the switching status of the heating control when dressing.
Upon request, we can retrofit your existing straight-through valve with 2-wire, but in many cases also with 4-wire connector cables and manifold housing, e.g. Apeks and Santi Thermovalve. You can send in your valve with your order. You will receive a ready-made feedthrough immediately or together with a goods order free of charge.
LED battery charge level indicator
8 LED bars indicate the battery charge level (0% = empty / 100% = fully charged). By tapping the switch once, the diodes light up and show the current charge level of the battery in 12.5% steps. After 15 seconds, the display switches off automatically. Note: The readability of the display is impeded under extreme lighting conditions.
Included with the battery tank is an electronically controlled, 2-stage CC-CV charger with 5,000mA charge current. Optionally available is a bargraph capacity display of the battery charge level in 12.5% capacity steps. For the demanding, tech-savvy diver, a digital adjustable charging system with display is also available as an option, which makes sense via multi-programmability as well as multi-balancer technology of different age 20Ah diver battery packs.
Also included in the standard scope of delivery of a 20Ah accumulator tank is a stainless steel cable clamp, for example, for attachment to a hose belt. When expanding to 40Ah, a second cable clamp is added. A container fastening bag with Molle system or a transport bag made of tear-resistant Codura textile is also available as an option.
Heated dry suits and heated wet suits
In our Central European latitudes, dry diving is preferred. From this point of view, the above mentioned technical design is very coherent as the most used diving equipment. For heated wet diving we have a selection of heated garments that meet the technical heating requirements. Please contact us if you have any requirements.
Other options
Accumulator tank without heating control and without piezo button
Accumulator tank with on-off switch, 20A
Adapted to the functional needs of technical diving or government security forces
Notes and features on the accumulators as well as on the production, service and sales services of Heizteufel in Berlin
The excellent quality of the individually tested accumulator packs, the high-quality material selection of the raw materials used as well as the electronic protection circuits integrated in the accumulator packs; these include
automatic switch-off
Balancer technology
Deep discharge protection
Short-circuit with reverse polarity protection
Charge overvoltage protection
Discharge current control
Temperature protection
offer the greatest possible safety for demanding applications and thus correspond to professional battery technology and brand quality, which also stands for a very long battery life.
The battery packs and battery tanks are mainly processed individually by Heizteufel to ensure the highest operational safety for the diver. All in all, the following activities listed by Heizteufel are carried out with regard to battery technology:
Testing of the charging and discharging end voltage by means of battery diagnostic devices for the industry
capacity measurements of the assembled battery packs, among other things also by means of graphic representations
waterproof sealing of integrated protection electronics, current-carrying contacts and battery cells
waterproof wiring of waterproof cable connectors
optional integration of waterproof heating controls in the protective encased battery pack
water pressure test in own pressure chamber system
Labeling of battery packs with serial number, preparation of technical documentation and operating instructions
Certification of battery technology according to UN38.3 and MSDS (Material Safety Data Sheet) by accredited testing bodies
Monthly reporting and payment of recycling fees to the GRS Battery Foundation for each battery pack sold
Inspection and testing requirements are carried out according to US military standard MIL-STD-105E
Consulting as well as service for warranty questions and special construction in Berlin
Option
Connector cables from Thor (compatible with WAM and E/O-Cord), Fischer, SubConn etc.
Si-Tech Vega feedthrough with 1 or 2 cable outputs
Valves for retrofit from Apeks, Santi and Si-Tech
Sent in suit feedthrough valve for cable installation
Manifold housing for different heating zones heating
On/off switch, 20A
LED charge level indicator
Notes
Registered trademarks are not marked separately, e.g. Thor, WAM, E/O-Cord etc.
Photos are from our own production or acquired under licensing law
Errors as well as technical changes are reserved
Technical data
Accumulator/battery cell
Material: rechargeable lithium-ion cells
Type: round cell MT21700 (3.7V / 5,000mAh / 18.5Wh)
Dimensions: diameter 21mm, height 70mm (+/- 1mm)
Battery pack/battery pack
Dimensions:
Height without housing ~284mm
Outer diameter ~ 70mm
Voltage: nominal 14.8V (working range 11.0 ~ 16.8V)
Charging voltage: max. 16.8V
Capacity: 40Ah, 592Wh
Charging/discharging current: max. 20A / 2x 15A
Battery weight: ~2.6kg including protective electronics, plug and cable
Safety technology: Integrated electronics protect the battery pack in the event of/against short circuits, deep discharge, overcharging and overheating
Charging process: balancer process
Protection standards: UN38.3 (Registration number: TCT201217B615), Material Safety Data Sheet (MSDS TCT201217M615)
Battery life: 400-500 charge-discharge cycles or 3 years with regular care and maintenance, whichever comes first
Battery tank/battery housing
Housing material: 100% POM, retaining latch made of V4A stainless steel
Components: Cable entry with kink protection, RGB piezo button, Heizteufel cord connector
Cable conductor: 2-wire with 15A current load/core, optional 4-core power cable with 12A current load/core
Cable connector: waterproof up to 30 bar, 2-pole and 4-pole with 15A current load/pole
Diving depth: for the entire system > 100m, pressure 10 bar
Downforce underwater: ~ 1.8kg at 10m
Housing dimensions:
Height ~ 400mm + ~75mm for the screw connection
Outer diameter ~ 92mm + 7mm for retaining bar
Total weight: ~4.3-4.5kg including controls, switches and cables
Heating controls for diving heated clothing
Type: PWM control operated via RGB piezo buttons in waterproof stainless steel design (V4A, 316L)
Number and features of the diver heating controls: 2 pieces each with 296W @ 14.8V DC heating output
Switching power per control: max. 300W @ 16.8V DC
Heating levels: 4-level control with 0 - 25% - 50% - 75% - 100% - 0
Switchability: by pressing a button on the piezo button, each heating level is set at 0.25s between buttons
Operating voltage: 6-17V DC
Electronic charger with active PFC (Premium)
Input voltage: 100-240VAC
Charging voltage: 16.8V DC
Charging current: max. 5A
Dimensions: 170x70x45mm (WxDxH)
Efficiency: >95%
The manufacturer declares conformity to CE 93/68
